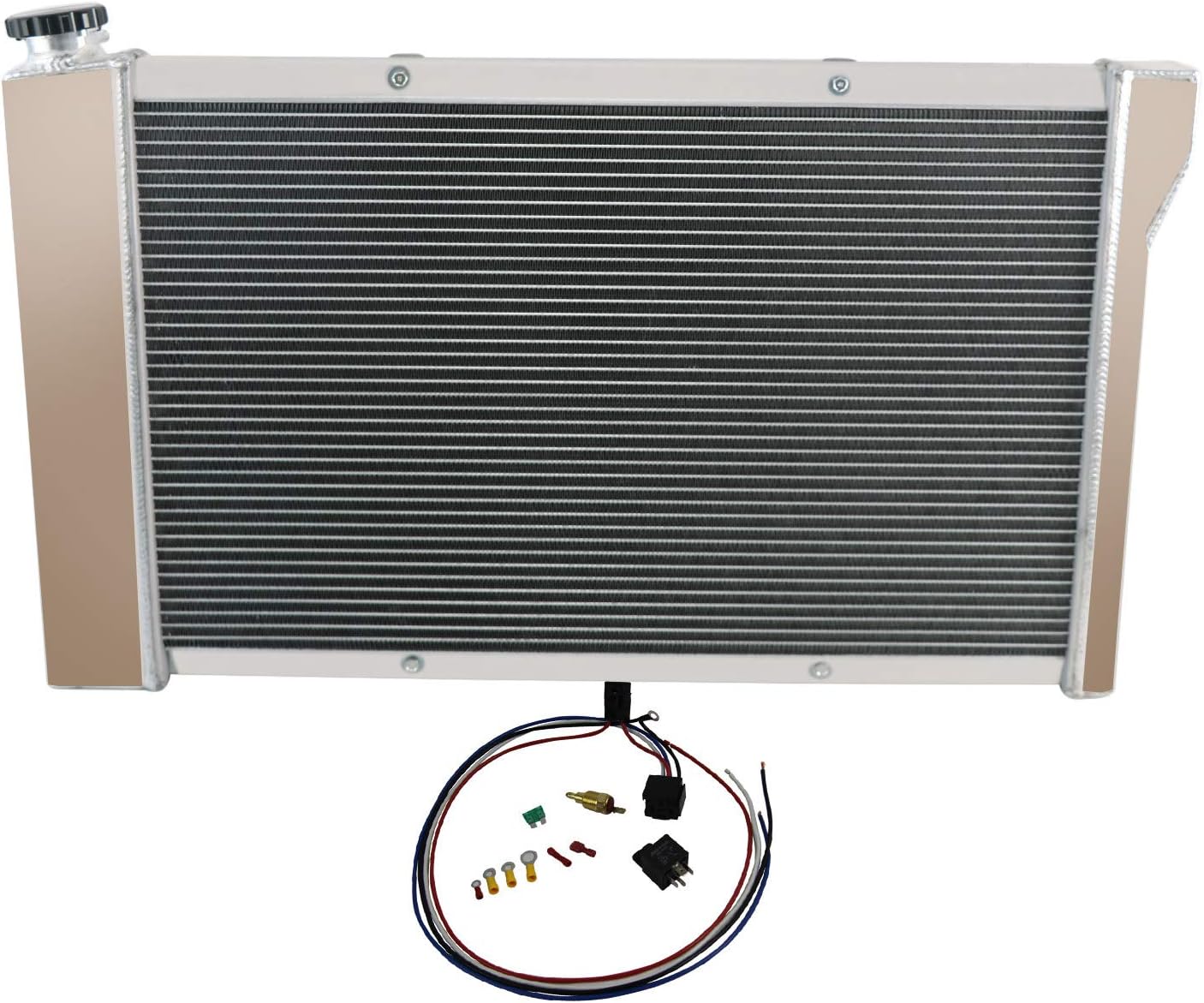

All Aluminum Radiator For 1967-72 Chevy C/G/K/P 10 20 30 series Pickup Trucks GMC C/G/K/P series 3 Row Radiators Shroud 2x12" Fans Relay Kit 1968 1969 1970 1971 1973 68 69 70 71 Radiador

Radiator Size: Core Size: 26.30"H x 16.06"W x 1.73"T; Overall Size: 32.09"L x19.09"W x5.91"H Upper inlet: 1 1/2" located on driver side. Lower outlet: 1 3/4" located on passenger side. Auto trans cooler: included Aircraft 5057 grade aluminum and with raw aluminum finish Vehicle Fitment: 1967-1972 Chevy C10 C20 K20 Panel Base, 4.1L (L6) 250 CID; 1967-1972 Chevy C10 C20 C30 Pickup Base, 4.1L/4.8L/4.6L/5.3L (L6/V8) 250/292/283/327 CID; 1967-1972 Chevy C10 C20 C30 Suburban Base, 4.1L/4.8L/4.6L/5.3L (L6/V8) 250/292/283/327 CID; 1967-1972 Chevy K10 K20 Pickup Base, 4.1L/4.8L/4.6L/5.3L (L6/V8) 250/292/283/327 CID; 1967-1972 Chevy K10 K20 Suburban Base, 4.1L/4.8L/4.6L/5.3L (L6/V8) 250/292/283/327 CID; 1967-1972 GMC C15/C1500 C25/C2500 C35/C3500 Pickup Base, 4.1L/4.8L/4.6L/5.3L (L6/V8) 250/292/283/327 CID; 1967-1972 GMC K15/K1500 K25/K2500 K35/K3500 Pickup Base, 4.1L/4.8L/4.6L/5.3L (L6/V8) 250/292/283/327 CID; 1967-1972 GMC K15/K1500 K25/K2500 K35/K3500 Suburban Base, 4.1L/4.8L/4.6L/5.3L (L6/V8) 250/292/283/327 CID; 1968-1970 GMC G15/G1500 G25/G2500 G35/G3500 Van Rally, 4.1L (L6) 250 CID; 1968-1971 Chevy G10 G20 G30 Van Base, 4.1L (L6) 250 CID; 1969-1971 Chevy G10 G20 G30 Van Sportvan, 4.1L (L6) 250 CID; 1970-1971 Chevy C10 Pickup Base, 4.1L (L6) 250 CID; 1970-1972 Chevy P10 P20 P30 Van Base, 4.1L/4.8L (L6) 250/292 CID; 1970-1972 GMC C15/C1500 Pickup Base, 4.1L (L6) 250 CID; 1971-1972 GMC P15/P1500/P25/P2500 P35/P3500 Van Base, 4.1L/ 4.8L (L6) 250/292 CID; FANS: Fan Size: 12.050" Maximum Fan CFM: 1730 cfm Thickness (in): 2.500" Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Thermostat Kit: RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans.

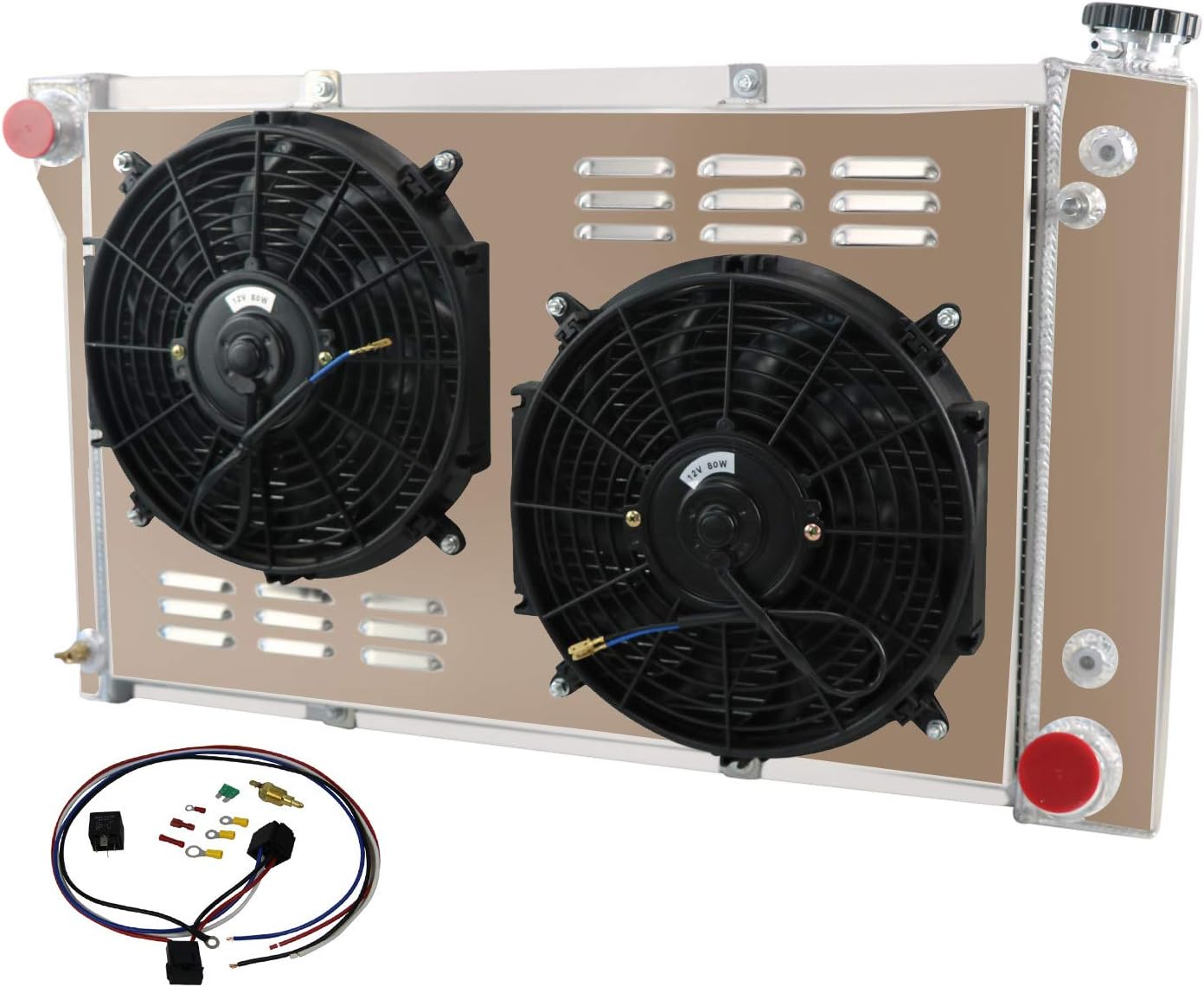

• ►3 Core Radiator Shroud Fan: Core Size: 26.30"H x 16.06"W x 1.73"T; Overall Size: 32.09"L x19.09"W x5.91"H; Inlet/Outlet: 1.50"/1.75"; Transmission oilcooler: φ26*305*G1/4(Z); Compatible with 1967-1972 1968 1969 1970 1971 Chevy C10 C20 K10 K20 Pickup Truck / GMC
• ►Aluminum Radiator: All-aluminum design with durable TIG-welded construction (AA5052 aircraft aluminum) ;High performance racing design, improves cooling by 35 -45% Temp.
• ►High Quality: Cubauto 3 Row Aluminum Radiator is welded in vacuum brazing furnace, no epoxy, all item is 100% inspected and tested for quality assurance.
• ►Easy To Install: Cubauto Brand-new radiator engineered and manufactured to meet original specifications for quick installation. Direct fit and built to last long with high quality aluminum core and aluminum tanks preventing corrosion.
• ►Note: 100% Leak Tested, Downflow Radiator, Durability Tested; Factory direct sales; 1-Year Warranty for Every Item.If you have any questions, please feel free to contact us, Cubauto will try our best to help you.Do not hesitate to get one!
• 3 Row Core AA5052 Aluminum Radiator for 1969-1972 Chevrolet Blazer/GMC Jimmy L6 V8, for 1967-1972 GMC C/K/S/T/P Series Pickup Trucks, 1967 1968 1969 1970 1971 1972 1973 67 68 19 70 71 72
